Menu options

In the Exsion365 ribbon the following items are available:

• Connection
• Search Company
• Database structure
• Function definition
• Formulas to values
• Show details
• Dynamic download
• Refresh All
• Refresh
• Help
• Info

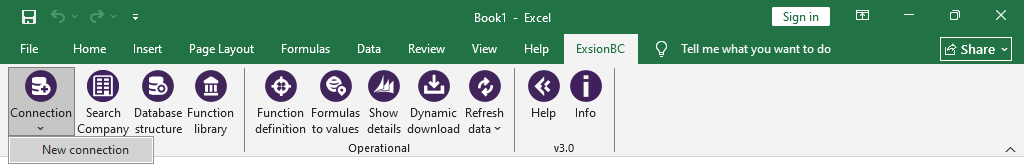

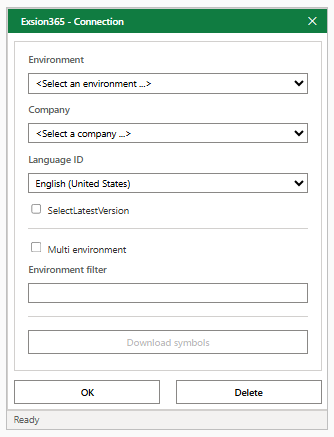

Connection

When you click “Connection”, you sign in with your Microsoft account and the following screen opens:

Here you can adjust the following settings:

Field	Description
Environment	The environment you want to access.
Company	The company you want to access.
Language ID	The language of the metadata from Business Central.
SelectLatestVersion	Forces the use of the latest version of the database. “Microsoft documentation”
Multi environment	Checkbox to indicate whether you want to work with multiple environments.
Environment filter	Filter to retrieve data from 1 selected environment.
Download symbols	Button to download the symbols (table/field definitions) for the selected environment. The button is only enabled when Business Central reports that there are symbols to download.
OK	Saves the connection.
Delete	Deletes the saved connection and signs you out. The next time you click “Connection”, you sign in again.

Search Company

When you click on “Search company”, a screen opens that makes all companies from the database visible.

Click a company to check or uncheck it, then press “Copy to active cell”.

Field	Description
Search	Shows only the companies that contain the entered text in one of the columns.
Select	Checks or unchecks all companies shown.
Name	The name of the company.
Display name, Environment, Type	The display name of the company and the environment (and its type) the company belongs to. These columns are only shown with “Multi environment”.
Copy to active cell	Places the checked companies in the active cell, separated by “|”, and closes the screen.

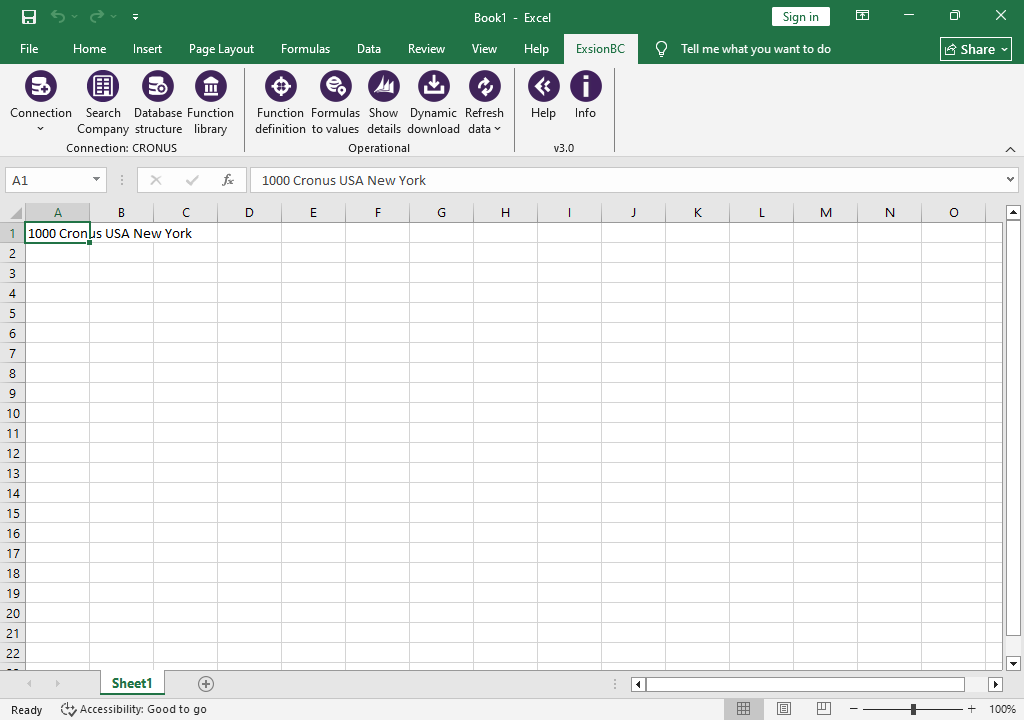

You will then see the chosen companies in the cell you selected. When you select multiple companies, these companies will all be placed in the same cell, separated by “|”. Such a cell can be used directly as a company filter. If you don’t want this, you must select a new cell and press “Search company” to copy the next company.

Please note! You do need to select the correct cell before pressing “Search company”. If you don’t do this, the company will be placed on the then selected cell.

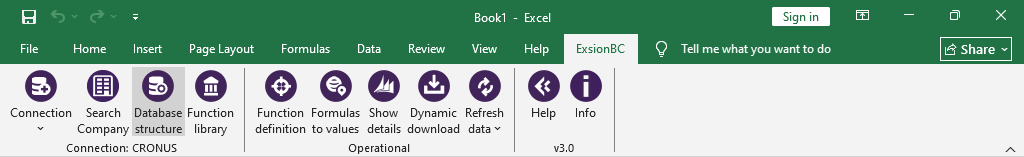

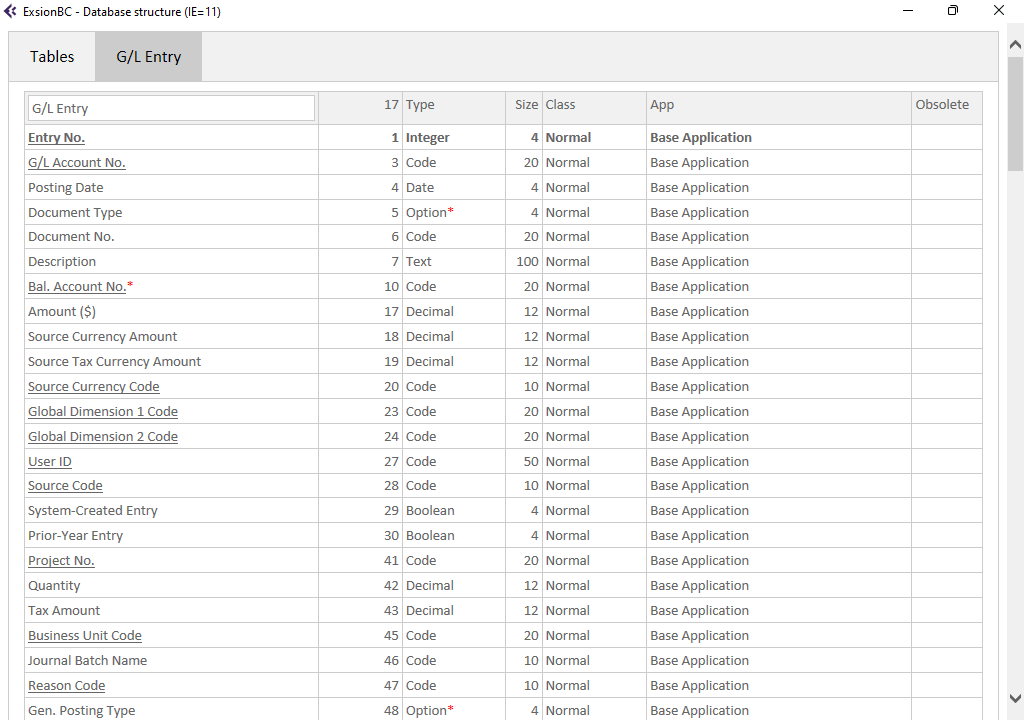

Database structure

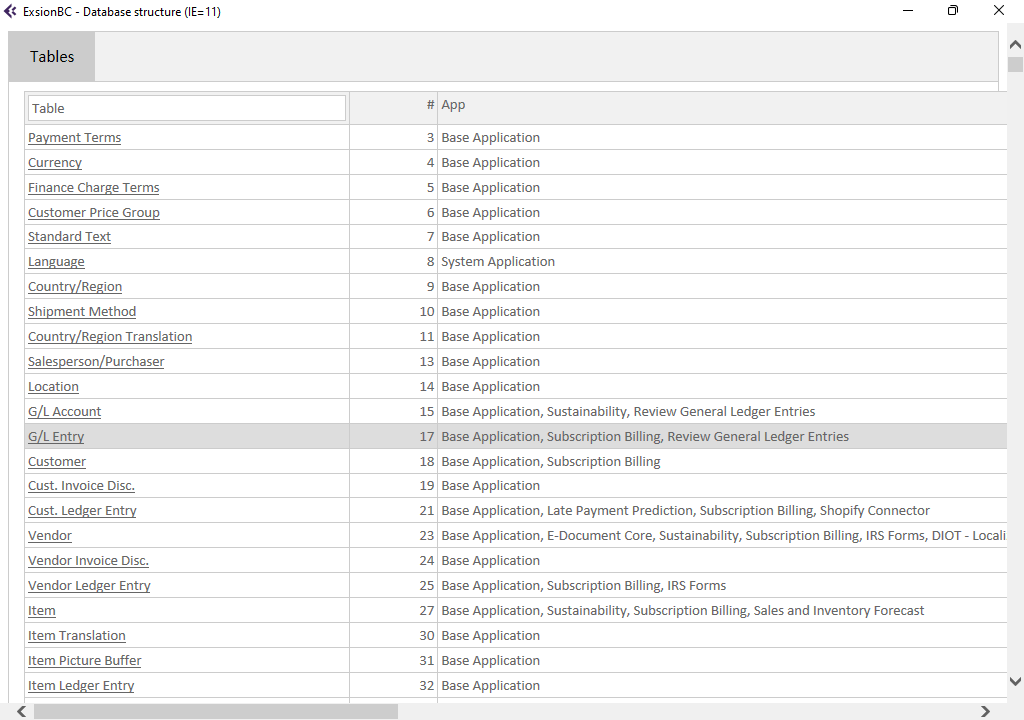

This option will create a roadmap from your Microsoft Dynamics 365 BC to provide information about tables, fields, indexes, datatypes and possible joins.

Click on a tablename to see the details about that table.

Column	Description
Column 1	Row 1 holds the tablename. The other rows are the fieldnames in that table.
Column 2	The field numbers. These can be used to find a table when creating a dynamic download or function.
Type	The field’s datatype.
Size	Maximum field length.
Class	This defines if a field must contain a value or can be left blank.
App	Extension(s) in which the table and fields are defined.
Obsolete	Whether the table or field is obsolete: “Pending” will be removed in a future version of Business Central, “Removed” has been removed. If it is followed by a “*”, the tooltip shows the reason.
Index	The indexes as defined for this table.
SumFields	The SUM fields as defined for this table.

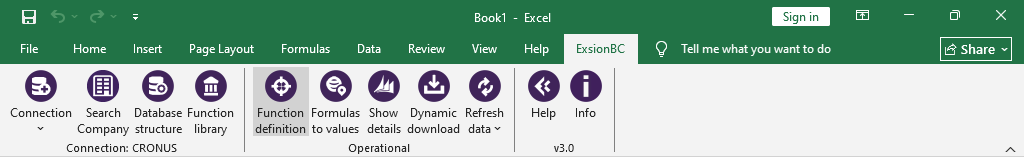

Function definition

It is possible to include a function in an Excel file. This function can then be used in the “Dynamic Download” to retrieve data from multiple tables.

Expression functions take as argument (definition) a range containing the table, index fields, and the field name whose value is to be retrieved.

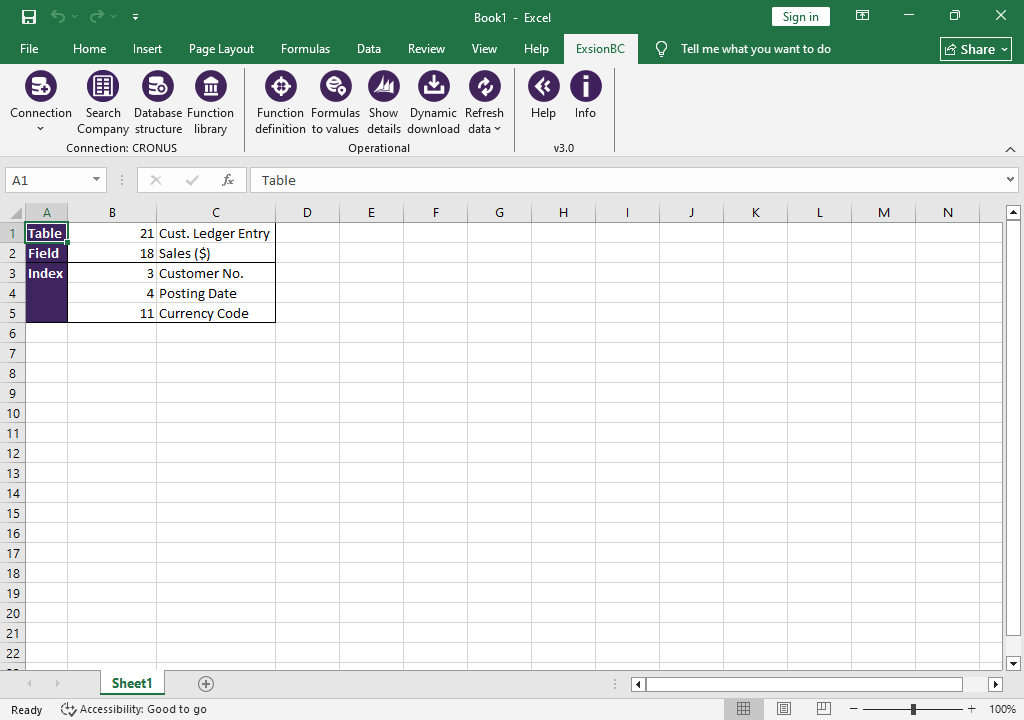

To create a definition for the range in which the table and index fields are included, you must choose the option “Function definition”. In this screen, the table, the field and the index must be specified in sequence.

After you click “OK” a name can be entered for this function.

The function will now be stored in the worksheet in a readable format with the active cell as the top-left one.

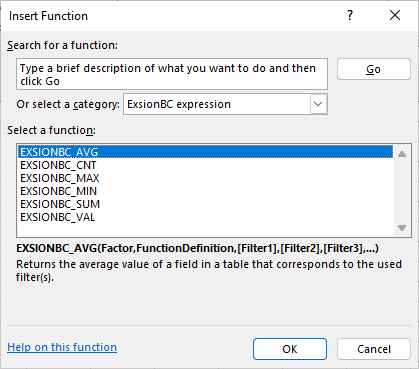

See the chapter “Expression functions”, for a list of functions that use this function definition.

See “Using a function definition” for an example.

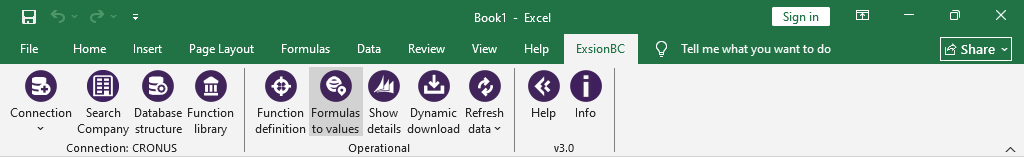

Formulas to values

This option is used to replace all Exsion365 functions in your document by their current values so the document can be sent to Excel users that have no access to Exsion365.

NOTE: Make sure to have a backup from the document before doing this because it cannot be undone.

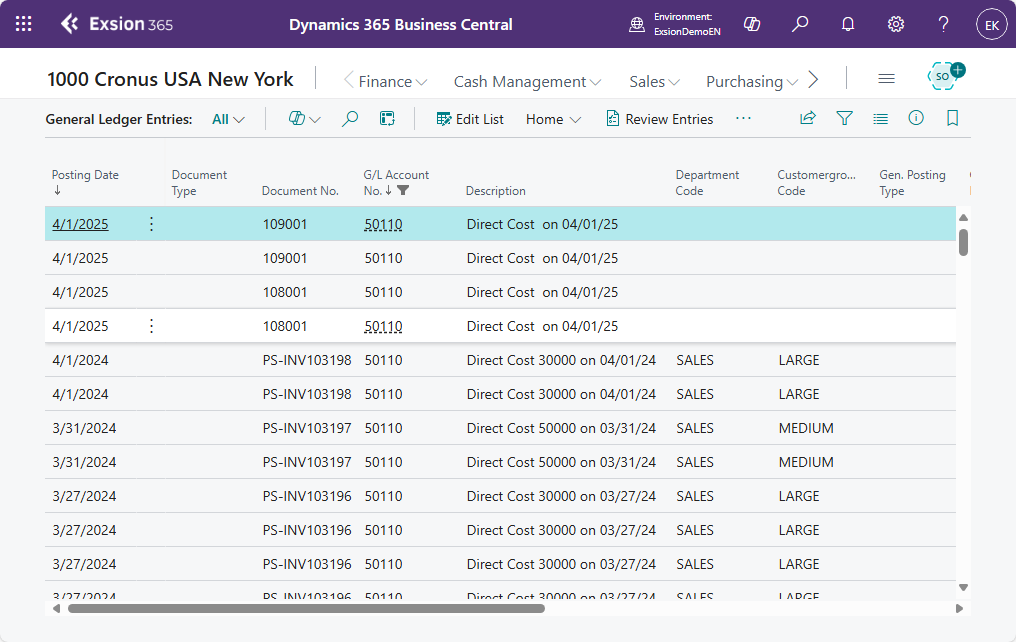

Show details

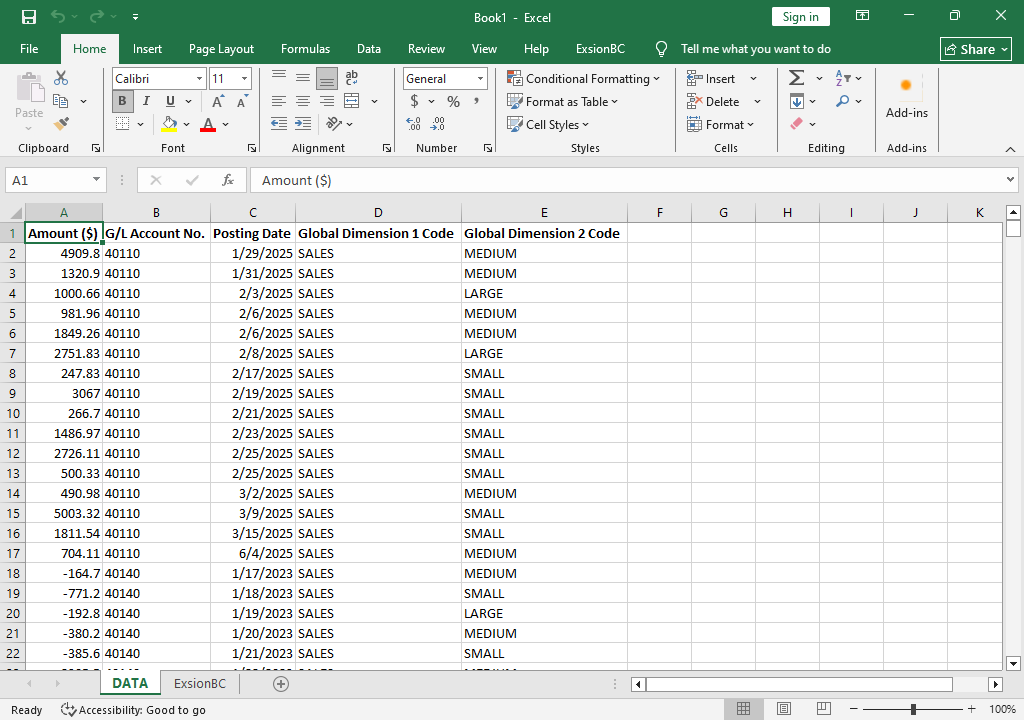

This functionality gives you insight into the details behind an Exsion365 formula of the current cell. Show details always opens Microsoft Dynamics 365 BC directly with the details.

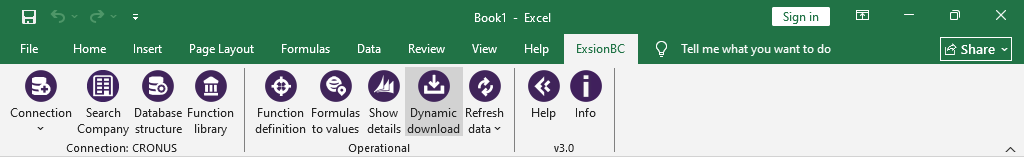

Dynamic download

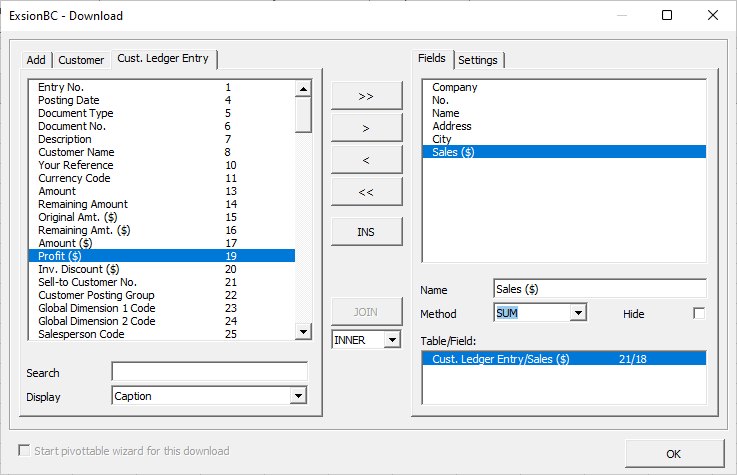

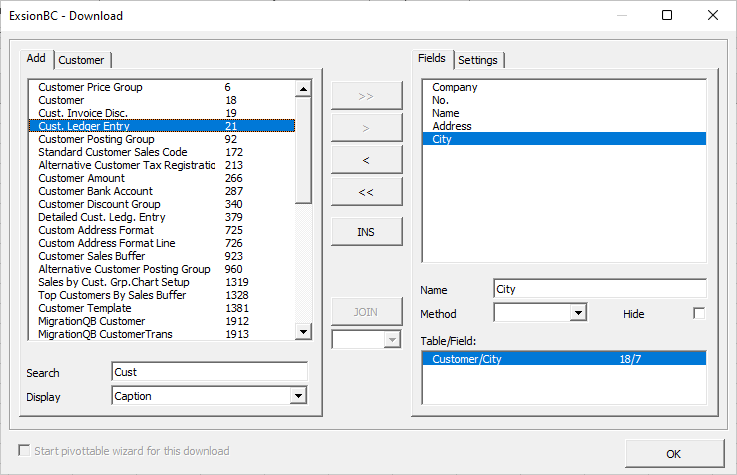

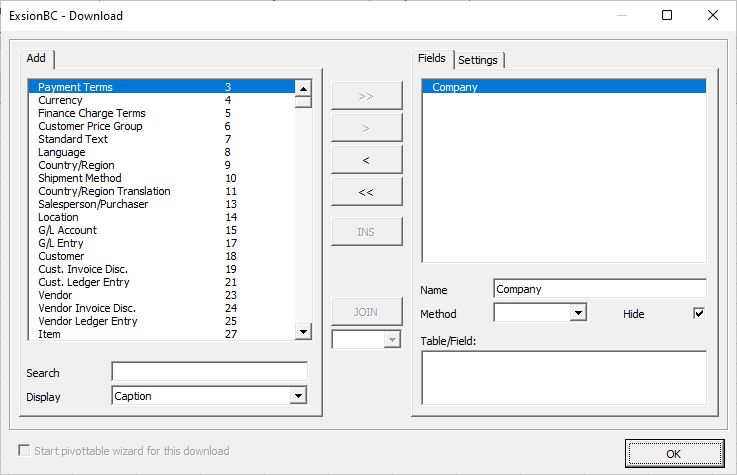

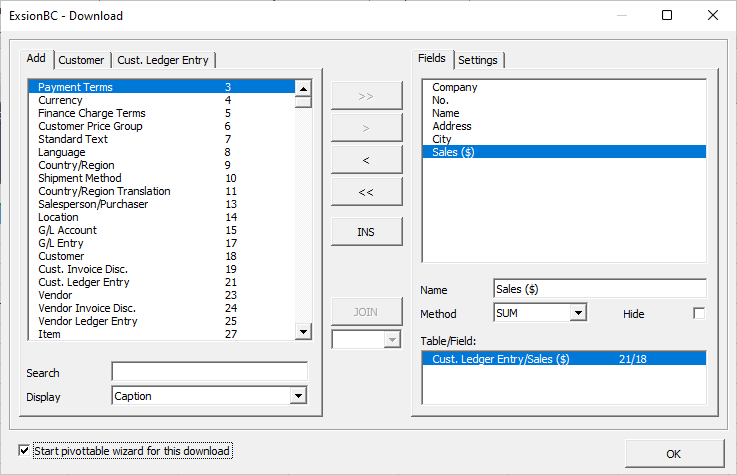

A Dynamic Download is used to get data from Microsoft Dynamics 365 BC in the Excel sheet. As opposed to functions, this will get more data than just one item. If the cursor sits in the output range of an existing download definition the cursor will be placed in the download definition instead of directly displaying the interface as described next.

Field	Description
Add	Shows a list of accessible tables from Microsoft Dynamics 365 BC.
Search	Enter table name or number to filter the list of tables.
Display	Choice to display table/field Name or Caption.
Buttons to select	The button “>>” adds all fields. The button “>” only adds the selected field. The buttons “<” and “<<” deselect either a single field or all fields.
INS	Insert a non-table column that can be used for a user defined calculation.
JOIN	If more than one table is used, they must be joined.
[___]	Join type (INNER, OUTER, INNER TOP 1, OUTER TOP 1, NOT EXISTS or METHOD)
Fields	Shows a list of fields used by the download.
Name	By default the field's actual name is used. This can be changed here. This name is shown in the (pivot)table.
Method	The calculation method for that field (SUM, MIN, MAX, AVG, CNT, Year, Quarter, Month, Week, Day, Period, INT, ImageS, ImageL, ImageXL or ImageXXL).
Hide	If checked, this will hide the field in the download definition.
Table/Field	Tablename/fieldname for the above selected field.
Start pivottable wizard for this download	After a download has been used for the first time, it can be modified to use it for creation of a PivotTable. Click on a cell in the download definition and then the Dynamic download menu option to modify the existing download. Now select the box: Start pivottable wizard for this download.
OK	Click “OK” to save the download definition in the current worksheet.

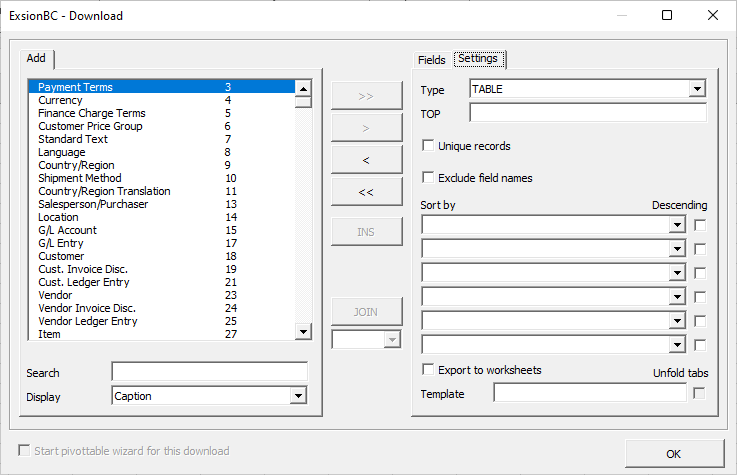

Options from the tab “Settings”.

Field	Description
TOP	Enter the number of records you want to retrieve, e.g. enter 5 to retrieve only the first 5 records, 10 for the first 10 records, etc. Leave empty to retrieve all records.
Unique records	This will force unique output over all used fields.
Exclude field names	Don't place field names on top of the record-set.
Sort by	Sort on a maximum of 6 fields.
Descending	Sort output descending.

To add a table double-click on a tablename in the list of tables. Exsion365 will then create a new tab for that table where you can select the fields to be shown on that tab.

Joining tables

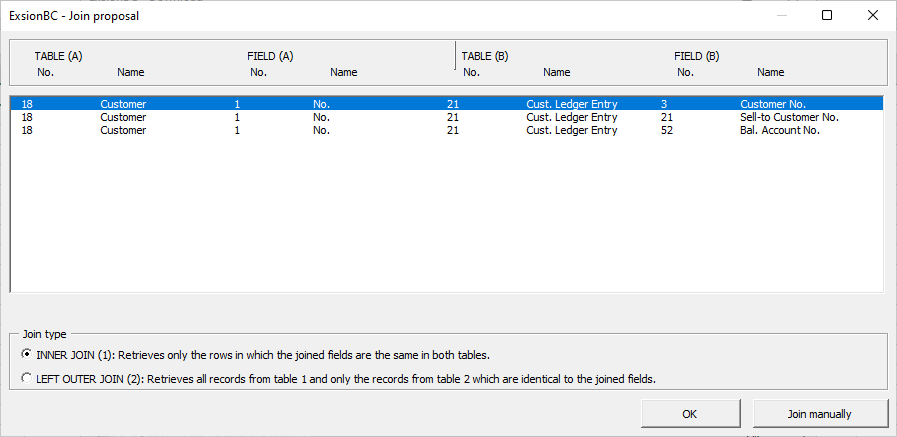

After adding a second table Exsion365 will show a JOIN proposal:

Field	Description
Join fields	The list of fields that can be used to join the tables.
Join type	The different Join types.
OK	Join the tables.
Join manually	Closes the proposal without joining. You then define the relation yourself with the “JOIN” button.

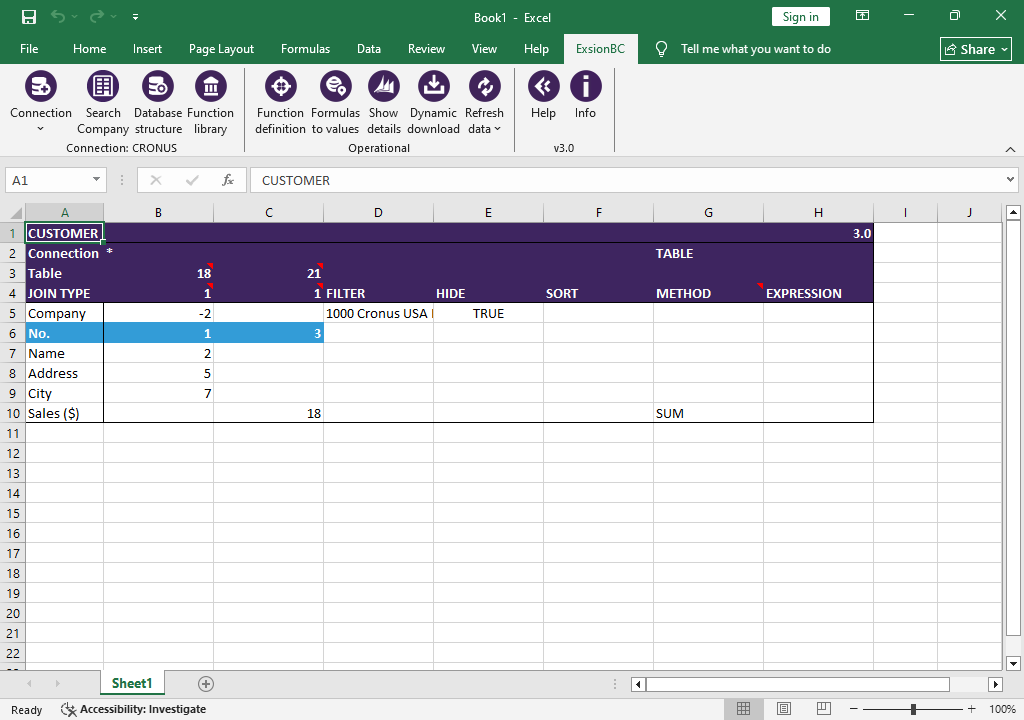

The download definition will be changed accordingly.

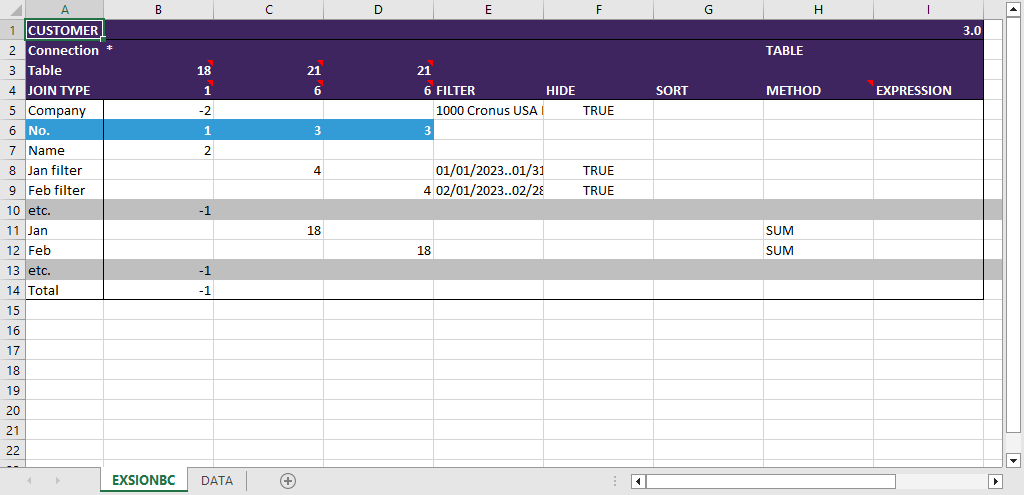

Field	Description
Connection	The connection on which the download is based.
Table	The table number(s) to download from. If this reads “Table excl. field names”, “Exclude field names” is switched on and no field names are shown above the output.
UNIQUE / TOP	To the right of “Connection” it reads “UNIQUE” when “Unique records” is switched on, or “TOP” with the number of records when that is filled in.
JOIN TYPE	If more than one table is used, the join type will be shown here.
FILTER	A filter for the field (See: Filter usage).
HIDE	Fields can be shown or hidden in the output location.
SORT	A number from 1 to 6. To sort descending, a negative number must be specified.
METHOD	The calculation method for that field (SUM, MIN, MAX, AVG, CNT, Year, Quarter, Month, Week, Day, Period, INT, ImageS, ImageL, ImageXL or ImageXXL).

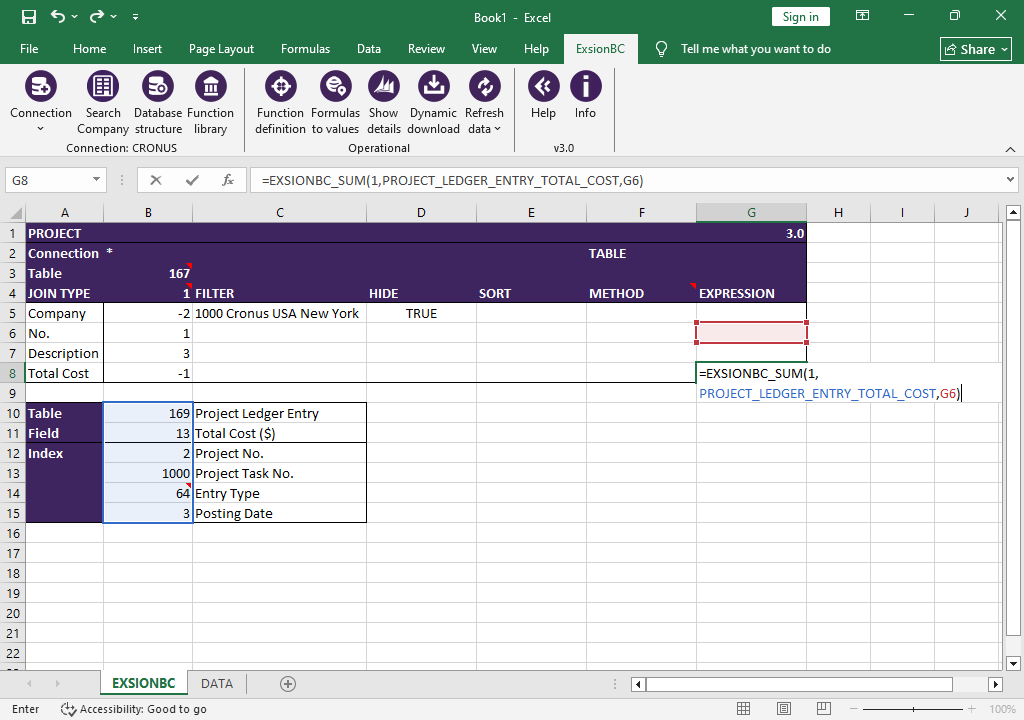

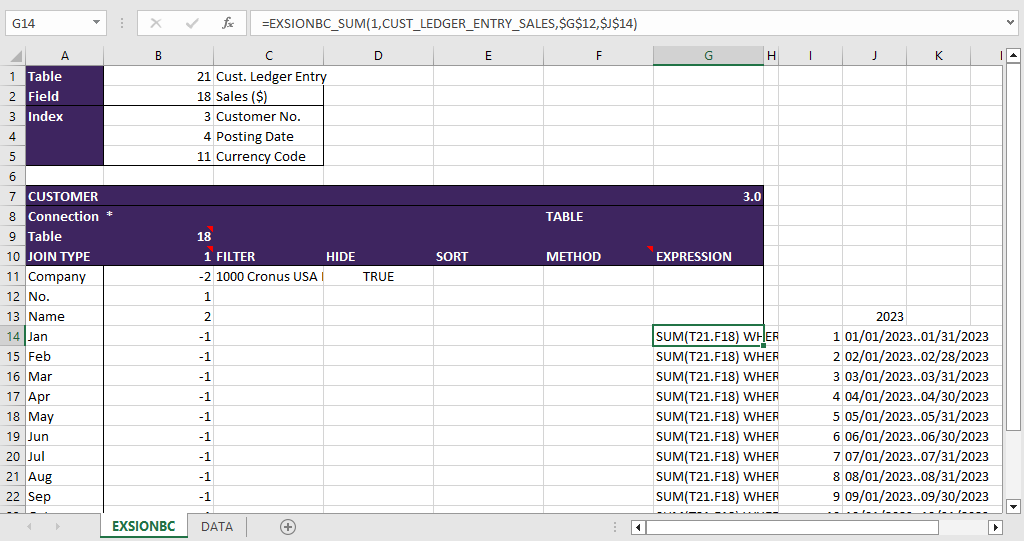

EXPRESSION	Here an Exsion365 function can be used to simplify the download.
Company	The first line always contains a dummy field “Company” with field number “-2”. This field can be used if multiple companies are used to report from a specific company. To do this, change the hide to “FALSE”, the output will then show the “Company” from which the data is retrieved.
Fields	All fields that are selected are displayed below each other.

Click the “Refresh All” button in the ribbon menu to activate the download. If this is the first time this download is used, it will ask for an output location.

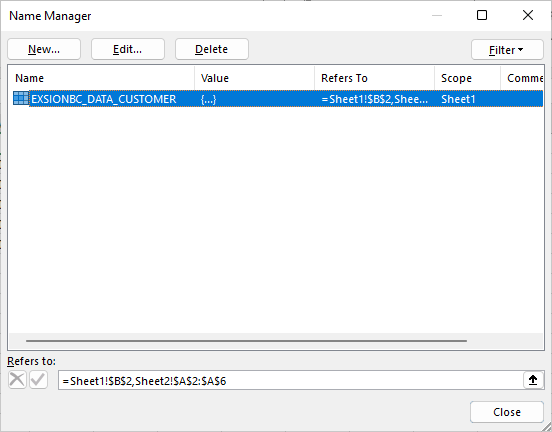

Each download definition has a name which starts with “EXSION365_DATA_” followed by the tablename. When multiple downloads are used, they are refreshed one after another. The downloads are refreshed based on the alphabetical order of the logical name.

Join types

There are 6 join types to choose from. The join proposal offers Inner and Outer. All 6 can be chosen in the list next to the “JOIN” button in the download screen, or entered in the “JOIN TYPE” row of the download definition.

Type of join	Description
1=Inner	Include only records where the joined fields from both tables are identical.
2=Outer	Include all records from the first table and only those records from the second table where the joined fields are identical.
3=Inner top 1	Displays the first record where the joined fields from both tables are identical. Regarding the first record, it can be influenced by sorting in descending or ascending order.
4=Outer top 1	Include all records from the first table and only the first record from the second table where the joined fields are identical. Regarding the first record, it can be influenced by sorting in descending or ascending order.
5=Not Exists	Include only records from the second table where the joined fields are not identical.
6=Method	Table join to show a summed value from the linked table.

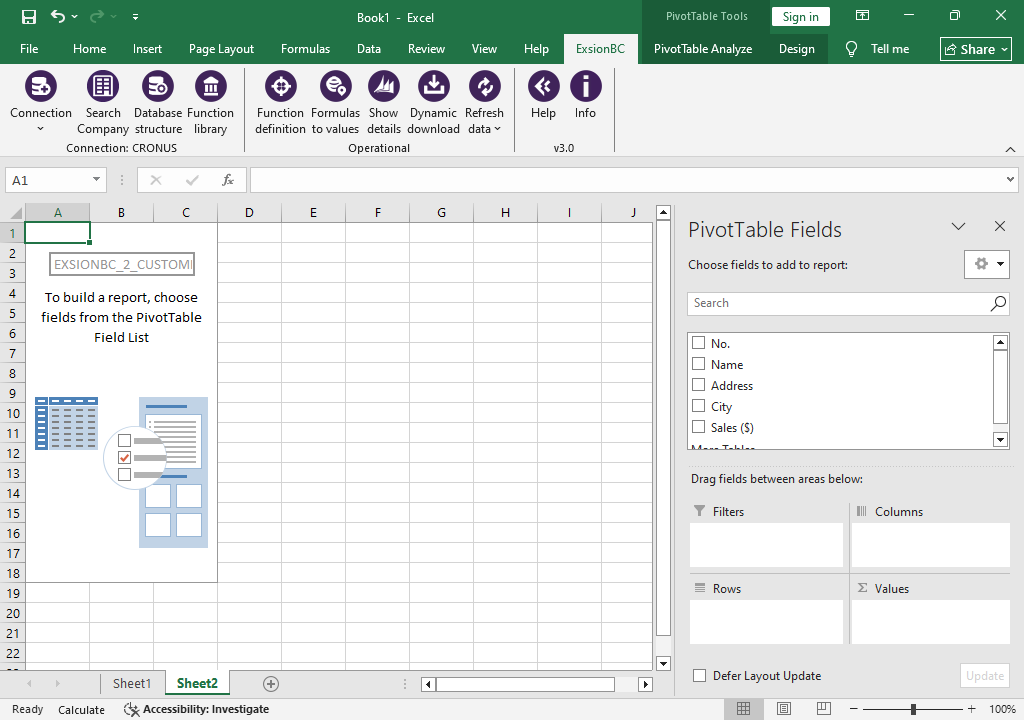

PivotTable

After a download has been used for the first time, it can be modified to use it for creating a PivotTable.

Click on a cell in the download definition and then the Dynamic download menu option to modify the existing download.

Now select the box “Start pivottable wizard for this download”.

When you click “OK”, Exsion365 will ask you for the location of the pivottable.

The PivotTable name will be “EXSION365_<tablename>”. Because of this, the pivottable will be refreshed when you click the “Refresh All” button in the Exsion365 menu.

Refresh All

The “Refresh All” button will activate all dynamic downloads and force a recalculation of all formulas so that all information will reflect the database information at that time.

While refreshing, Exsion365 shows the progress in the task pane “Exsion365 - Refresh”:

Column	Description
Name	The name of the download or worksheet.
Action	What is being executed.
Environment	The environment the data comes from.
Start	The time the action started.
Size	The amount of data retrieved.
Duration	How long the action took.

If the worksheet is protected, Exsion365 asks for the sheet password in the “Unprotect Sheet” screen. The password is stored encrypted in the workbook, so it is not asked again on the next refresh.

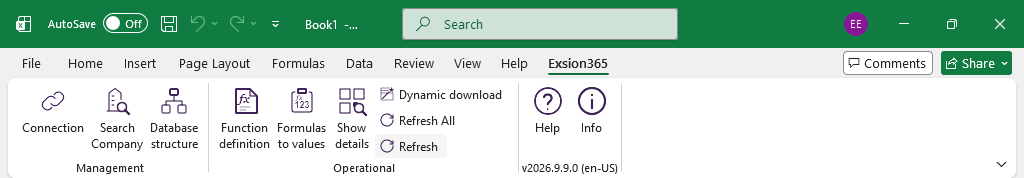

Refresh

Should you want to refresh only the download definition that the cursor sits in, you can use the “Refresh” button instead. This can be useful for testing purposes. The date and time of the last refresh is always displayed in the header of the download definition.

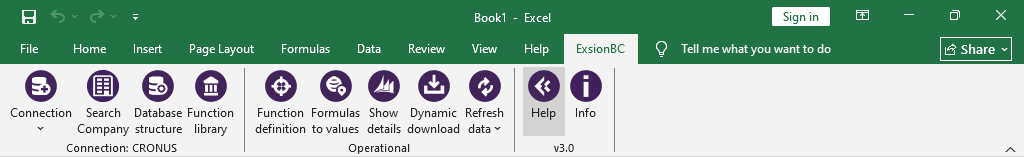

Help

Contains all the information needed to use Exsion365.

Info

Tab	Description
Support	Our helpdesk can provide remote support using TeamViewer.
Version	Field Description Version The Exsion365 version number. Feedback Exsion365 B.V. is constantly working to further improve its products. Therefore we collect meta-data about the use of Exsion365. With meta data we mean data on the use of reports / Excel sheets. We try to discover trends and patterns. We emphatically do not collect the data of the reports and / or spreadsheets themselves. The manner in which we gather information has no influence on the operation and performance of the system. If you do not want to contribute to this improvement programme you can change the settings of Exsion365, so no meta data is transmitted to us. The results of our improvements are communicated through a newsletter that we send to your e-mail address. If you no longer want to receive this newsletter, send an email to office@exsion365.com. Release notes The release notes of the latest Exsion365 version.
License	Shows the company to which a right of use has been granted, the product key, the number of licenses and the number of activated licenses, and which users have activated a license (with the version they use). The “EXPORT” button copies this list to a new worksheet “Exsion365”; an existing worksheet with that name is replaced.

Functions

• Standard functions
• Expression functions

Standard functions

Function	Description
EXSION365_ANVBAL	Returns the balance of an analysis view.
EXSION365_COMPANY	Returns the display name of a company.
EXSION365_DATE	Returns a date filter.
EXSION365_DI1NAME	Returns the global dimension 1 name.
EXSION365_DI2NAME	Returns the global dimension 2 name.
EXSION365_DIMNAME	Returns the dimension name.
EXSION365_CUSNAME	Returns the customer name.
EXSION365_CUSBAL	Returns the outstanding balance of a customer.
EXSION365_CUSCITY	Returns the customer location.
EXSION365_VENNAME	Returns the vendor name.
EXSION365_VENBAL	Returns the outstanding balance of a vendor.
EXSION365_VENCITY	Returns the vendor location.
EXSION365_ACCNAME	Returns the name of the G/L account.
EXSION365_ACCBAL	Returns the balance or budget of a G/L account.
EXSION365_ACCTOT	Returns the totaling of the G/L account.
EXSION365_CONCATENATE	Returns the combined text of a range.
EXSION365_URL	Returns the Web client URL of a company.
EXSION365_WEEKNUM	Returns the week number of a date.

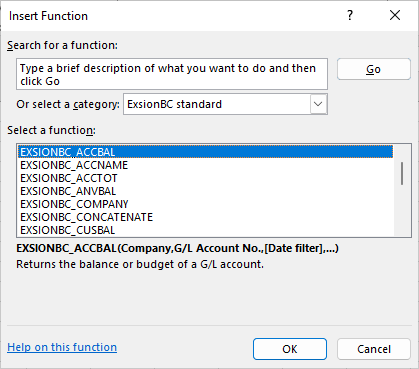

These functions can be found in Excel’s function wizard under the category “Exsion365 for Business Central”.

EXSION365_ANVBAL

Returns the balance of an analysis view.

Argument	Description
Company	Company.
Analysis view code	Analysis view code.
[G/L account]	G/L account (filter).
[Date filter]	Date (filter).
[Budget code]	Budget.
[Dimension 1]	Code dimension 1 filter.
[Dimension 2]	Code dimension 2 filter.
[Dimension 3]	Code dimension 3 filter.
[Dimension 4]	Code dimension 4 filter.

EXSION365_COMPANY

Returns the display name of a company.

Argument	Description
Company	Company.

EXSION365_DATE

Returns a date filter.

Argument	Description
Company	Company.
Type	Choose 1=Day, 2=Week, 3=Month, 4=Quarter, 5=Year or 6=Accounting Period.
[Cumulative]	0=No, 1=Yes or 2=YTD (Year to date).
[Index]	Index of type (e.g. Month 1 to 12).
[Year]	Optional year (the current year is default).

EXSION365_DI1NAME

Returns the global dimension 1 name.

Argument	Description
Company	Company.
Dimension code	Dimension 1.

EXSION365_DI2NAME

Returns the global dimension 2 name.

Argument	Description
Company	Company.
Dimension code	Dimension 2.

EXSION365_DIMNAME

Returns the dimension name.

Argument	Description
Company	Company.
Dimension group	Dimension group.
Dimension code	Dimension value.

EXSION365_CUSNAME

Returns the customer name.

Argument	Description
Company	Company.
Customer No.	Customer No.

EXSION365_CUSBAL

Returns the outstanding balance of a customer.

Argument	Description
Company	Company.
Customer No.	Customer No.
[Date filter]	Date (filter).
[Dimension 1]	Global dimension code 1 filter.
[Dimension 2]	Global dimension code 2 filter.

EXSION365_CUSCITY

Returns the customer location.

Argument	Description
Company	Company.
Customer No.	Customer No.

EXSION365_VENNAME

Returns the vendor name.

Argument	Description
Company	Company.
Vendor No.	Vendor No.

EXSION365_VENBAL

Returns the outstanding balance of a vendor.

Argument	Description
Company	Company.
Vendor No.	Vendor No.
[Date filter]	Date (filter).
[Dimension 1]	Global dimension code 1 filter.
[Dimension 2]	Global dimension code 2 filter.

EXSION365_VENCITY

Returns the vendor location.

Argument	Description
Company	Company.
Vendor No.	Vendor No.

EXSION365_ACCNAME

Returns the name of the G/L account.

Argument	Description
Company	Company.
G/L account	G/L account.

EXSION365_ACCBAL

Returns the balance or budget of a G/L account.

Argument	Description
Company	Company.
G/L account	G/L account (filter).
[Date filter]	Date (filter).
[Budget code]	Budget.
[Dimension 1]	Global dimension code 1 filter.
[Dimension 2]	Global dimension code 2 filter.

EXSION365_ACCTOT

Returns the totaling of the G/L account.

Argument	Description
Company	Company.
G/L account	G/L account.

EXSION365_CONCATENATE

Returns the combined text of a range.

Argument	Description
Range	Range of cells.
[Delimiter]	A delimiter or text.
[Unique]	If TRUE, then only the unique values will be combined.
[Empty cells]	If TRUE, empty cells will be included.

EXSION365_URL

Returns the Web client URL of a company.

Argument	Description
Company	Company.
[Page]	Page
[Table]	Table
[Field 1]	Field 1
[Filter 1]	Filter 1
[Field 2]	Field 2
[Filter 2]	Filter 2
[Field 3]	Field 3
[Filter 3]	Filter 3
[Field 4]	Field 4
[Filter 4]	Filter 4
[Field 5]	Field 5
[Filter 5]	Filter 5
[Field 6]	Field 6
[Filter 6]	Filter 6
[Field 7]	Field 7
[Filter 7]	Filter 7
[Field 8]	Field 8
[Filter 8]	Filter 8

EXSION365_WEEKNUM

Returns the week number of a date.

Argument	Description
Date	Specify a date.
[Format]	0=WW, 1=YYWW, 2=YYYYWW, 3=WWYY, 4=WWYYYY.
[Delimiter]	0=none, 1=space, 2=-, 3=|, 4=/, 5=\.

Expression functions

Function	Description
EXSION365_CNT	Returns the number of records of a table which corresponds to the used filter(s).
EXSION365_AVG	Returns the average value of a field in a table that corresponds to the used filter(s).
EXSION365_MAX	Returns the largest value of a field in a table that corresponds to the used filter(s).
EXSION365_MIN	Returns the smallest value of a field in a table that corresponds to the used filter(s).
EXSION365_VAL	Returns the (first) value of a field in a table that corresponds to the used filter(s).
EXSION365_SUM	Returns the summed value of a field in a table that corresponds to the used filter(s).

Expression functions use a function definition that is stored in the Excel file itself. They therefore only work in a workbook that contains the function definition used.

They can be found in Excel’s function wizard under the heading “Exsion365 for Business Central”:

EXSION365_CNT

Returns the number of records of a table which corresponds to the used filter(s).

Argument	Description
Factor	Factor by which to multiply the result.
Function definition	Function definition (Range).
[Filter …]	Filter on the index field of the function definition: the first filter belongs to the first index field, the second to the second, and so on. There are as many filters as there are index fields in the function definition.

EXSION365_AVG

Returns the average value of a field in a table that corresponds to the used filter(s).

Argument	Description
Factor	Factor by which to multiply the result.
Function definition	Function definition (Range).
[Filter …]	Filter on the index field of the function definition: the first filter belongs to the first index field, the second to the second, and so on. There are as many filters as there are index fields in the function definition.

EXSION365_MAX

Returns the largest value of a field in a table that corresponds to the used filter(s).

Argument	Description
Factor	Factor by which to multiply the result.
Function definition	Function definition (Range).
[Filter …]	Filter on the index field of the function definition: the first filter belongs to the first index field, the second to the second, and so on. There are as many filters as there are index fields in the function definition.

EXSION365_MIN

Returns the smallest value of a field in a table that corresponds to the used filter(s).

Argument	Description
Factor	Factor by which to multiply the result.
Function definition	Function definition (Range).
[Filter …]	Filter on the index field of the function definition: the first filter belongs to the first index field, the second to the second, and so on. There are as many filters as there are index fields in the function definition.

EXSION365_VAL

Returns the (first) value of a field in a table that corresponds to the used filter(s).

Argument	Description
Factor	Factor by which to multiply the result.
Function definition	Function definition (Range).
[Filter …]	Filter on the index field of the function definition: the first filter belongs to the first index field, the second to the second, and so on. There are as many filters as there are index fields in the function definition.

EXSION365_SUM

Returns the summed value of a field in a table that corresponds to the used filter(s).

Argument	Description
Factor	Factor by which to multiply the result.
Function definition	Function definition (Range).
[Filter …]	Filter on the index field of the function definition: the first filter belongs to the first index field, the second to the second, and so on. There are as many filters as there are index fields in the function definition.

Expression function example

An example of an expression function is retrieving the total costs of a project, per project number.

For this, a download definition is created on the project entry table in combination with a defined function (See: Function definition)

The download definition is, in addition to fields from the table, also provided with an Expression field (Total costs with field number -1):

In the Total Cost line, the EXSION365_SUM function can now be used in the Expression column.

The function looks like this:

=EXSION365_SUM(1,PROJECT_LEDGER_ENTRY_TOTAL_COST,G6)

In this case, this function has 3 parameters. Whereby:

Parameter 1: The multiplication factor ( 1 or -1)

Parameter 2: The name of the Function definition.
      This can be filled in automatically by selecting the field number column of the Function definition during the creation of the expression function, or by choosing the correct one after pressing the F3 key.
      The latter provides an overview of the available functions.

Parameter 3: The cell in the download definition where the project number will appear.

The number of parameters that can be used depends on the number of fields in the Function definition.

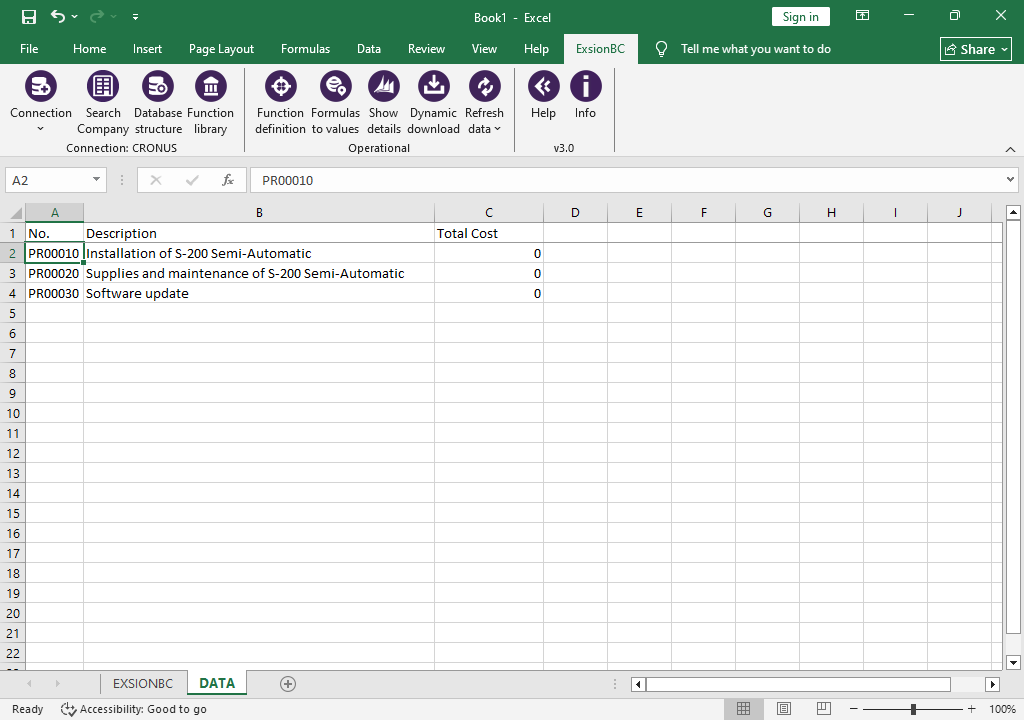

After pressing the button “Refresh All” this will be the result on the output sheet:

In a download definition, multiple expression fields may be included, each with their own parameters.

The data for these parameters may also come from cells outside the download definition.

Filter usage

When you enter a filter, you can use all the numbers and letters that you can normally use in the field. In addition, you can use some special symbols or mathematical expressions.

Here are the available formats:

Symbol	Meaning	Sample Expression	Records Displayed
=	Equal to	377	Number 377.
		BLUE	Those with the BLUE code, for example, the BLUE warehouse code.
		22-1-2015 10:00	An exact datetime: 22-jan-2015 10:00:00.
..	Interval	1100..2100	Numbers 1100 through 2100.
		..2500	Up to and including 2500.
		..31-12-2014	Dates up to and including 31-dec-2014.
|	Either/or	1200|1300	Those with number 1200 or 1300.
&	And	<2000&>1000	Numbers that are less than 2000 and greater than 1000.
<>	Not equal to	<>0	All numbers except 0.
		<>A*	Not equal to any texts that start with A.
>	Greater than	>1200	Numbers greater than 1200.
>=	Greater than or equal to	>=1200	Numbers greater than or equal to 1200.
<	Less than	<1200	Numbers less than 1200.
<=	Less than or equal to	<=1200	Numbers less than or equal to 1200.
*	An indefinite number of unknown characters	*cem*	Texts that contain “cem”.
		*cem	Texts that end with “cem”.
		cem*	Texts that begin with “cem”.
?	One unknown character	?im	Texts such as Jim or Tim.
()	Calculate before rest	30|(>=10&<=20)	Those with number 30 or with a number from 10 through 20 (the result of the calculation within the parentheses).

You can also combine the various format expressions:

Sample Expression	Records Displayed
5999|8100..8490	Include any records with the number 5999 or a number from the interval 8100 through 8490.
..1299|1400..	Include records with a number less than or equal to 1299 or a number equal to 1400 or greater (all numbers except 1300 through 1399).
>50&<100	Include records with numbers that are greater than 50 and less than 100 (numbers 51 through 99).
*C*&*D*	Texts containing both C and D.
*co?*	Texts containing “co” such as cot, cope and incorporated. “co” must be present, followed by at least one character, but there can be an indefinite number of characters before and after these.

Example customer turnover

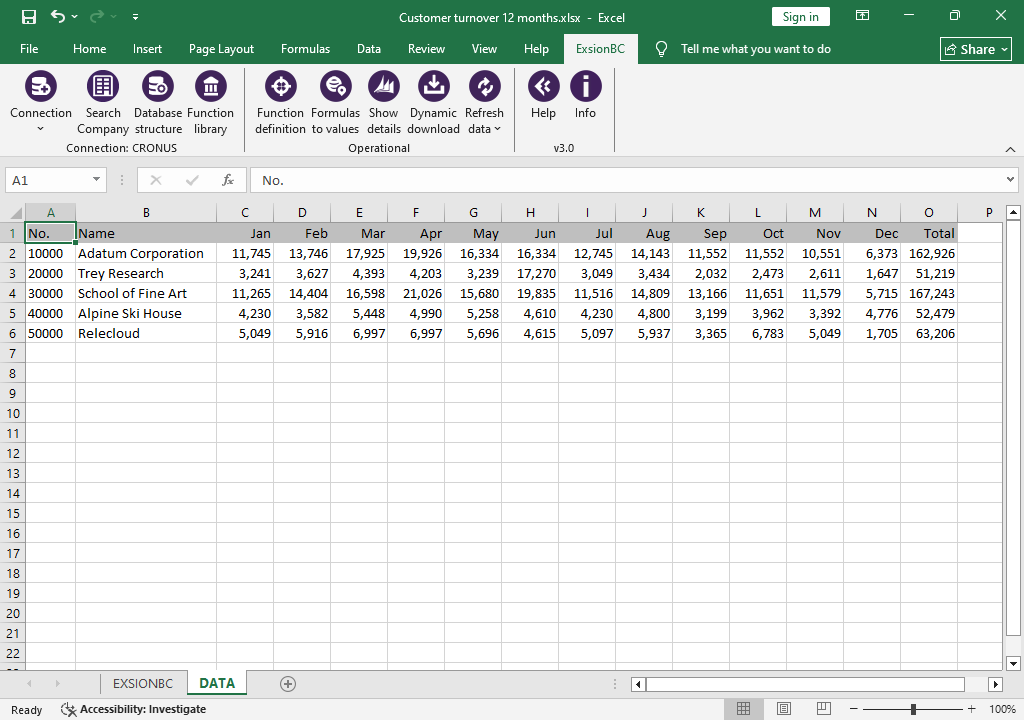

Here are 2 ways to create a turnover overview per customer/month as shown here:

Using a method

This is the most laborious way: the customer ledger entry table (21) is joined again for each month.

For each period:

• a column is specified (see columns 'C' to 'N'), using the JOIN TYPE '6'.
• a row is specified as the date filter (see rows '8' to '19').
• and a result row using the 'SUM' method is specified (see rows '20' to '31').

Using a function definition

Use a “Function definition” in the expression column:
